Details About This Rolling Shutter

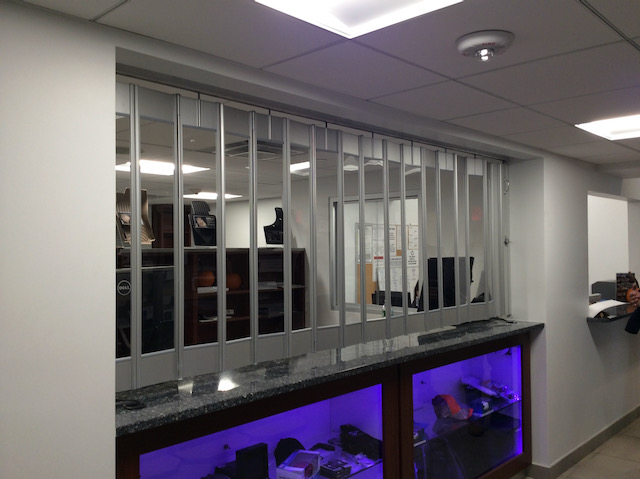

This security grille is the Model 880. The commercial garage doors use the frameless ⅛ inch tempered glass lites, which allow for both high visibility and security. The integrity of the tempered glass panels is further enhanced by the use of rigid P.V.C. gaskets top and bottom, which incorporate a unique shock absorbing core to cushion the glass.

For smooth rolling, trouble-free operation, all USP Model 880 grilles run on ⅛ inch diameter ball bearing rollers in our heavy duty custom track. The grilles use 5/16 inch cold rolled steel hanger rods that will not deform during the lifetime of the security grille. A greater degree of security can be provided by substituting ⅛ inch lexan or solid aluminum panels in the place of the standard tempered glass.

The cylinder controlled lock posts with self-adjusting steel floor bolts and steel top bolts are provided for the security grille ends. The intermediate posts with steel floor bolts are supplied for (up to) every 10 feet of security grille. The dust-free, stainless top, floor sockets are included. The bipart egress assemblies are provided as required.
